Motherboard support ranges from ITX to E-ATX and includes pre-installed supports. This means that users cannot easily repurpose the button for the reset header on the motherboard. Otherwise, a pair of USB A ports and a USB C port along with a combined headphone and microphone jack are presented.ĭeepCool’s RGB LED controller has proprietary connectors all around – including for the LED button lead. The top I/O includes the usual suspects but has a button for LED control rather than a reset button, which is run to DeepCool’s included RGB LED controller. For as simple as it is, DeepCool has found an efficient method for reattaching the panel after working inside the case. Removal is straightforward, and the panel has two tabs on the bottom edge that ease in placement, after which the panel slides forward into place.
#DEEPCOOL CK560 WHITE FULL#

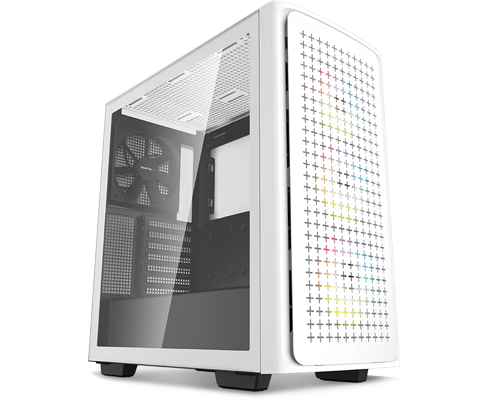

The tempered glass panel covers the full height and width of the left side panel and is secured using captive thumbscrews. The seven expansion slot covers are reusable and secured internally by regular Philips screws, and the space above the slots is a mesh, which will aid front-to-back airflow around the GPU. The position also includes a 120mm fan mount that can be adjusted up or down as desired. The CK560 has a 140mm fan mount in a fixed position in the rear. Finally, the front panel can be removed to access the three front fans if needed. Behind the front cover is the front filter, also easily removable for cleaning. The CK560 has a distinct ‘plus’ hatch pattern on the front cover, which is spaced in front of the front panel and is easily removable.
DeepCool CK560 Features and Specifications Case Front Unlike previous examples we’ve reviewed, the connector on this cable isn’t the standard two-pin that the Reset header uses, which means that the ‘LED’ button on the top of the case cannot be immediately repurposed for the Reset function.
Note that even the Nvidia FE 4090 at 304mm in length will fit, as will most GPUs, but clearance for the 12VHPWR adapters shipped with those cards will be tight.ĭeepCool has also continued the trend of supplying an ‘RGB’ controller that is operated by a button on the top of the case that is usually reserved for the motherboard Reset header. Speaking of fitment, with 380mm of GPU clearance available, the 324mm MSI RX6800 Gaming X Trio in our review rig fits in the traditional horizontal mounting configuration.
#DEEPCOOL CK560 WHITE PRO#
This bears out with only two 3.5″ / 2.5″ drive trays in the PSU compartment and two 2.5″ positions on the back of the motherboard, a maximum CPU cooler height of 175mm, and a quoted 160mm limitation for PSUs – though the sole drive cage may be removed to make room for larger units.ĭespite the limitations, the CK560 still easily fits the beefy be quiet! Dark Rock Pro 4 will accommodate nearly any other tower cooler. Supporting three 120mm or two 140mm fans up front and two 120mm or 140mm fans up top, and with very little room to spare, the CK560 is a fairly compact case. Coming in at an MSRP of US$109, the CK560 comes in at a slight premium for a standard ATX mid-tower, while shipping with four fans – three RGB 120mm fans up front and one non-RGB 140mm fan in the rear – along with a tempered glass side panel – and an integrated GPU support arm. Today we’re taking a look at DeepCool’s CK560 in white. Power Supply Compartment and Case Bottom.DeepCool CK560 Features and Specifications.
